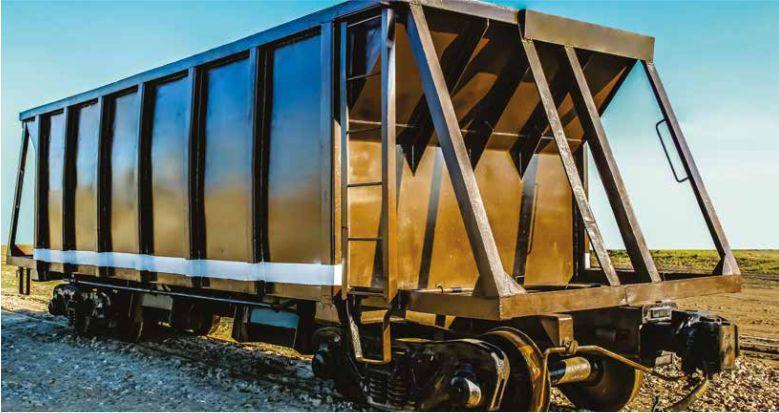

HAC/HAD Type Wagon
Technical Information
Useful Volume: 29,00 m³
Nominal Load Capacity: HAC: 46,00 T
HAD: 62,00 T
Tare: 18,00 T

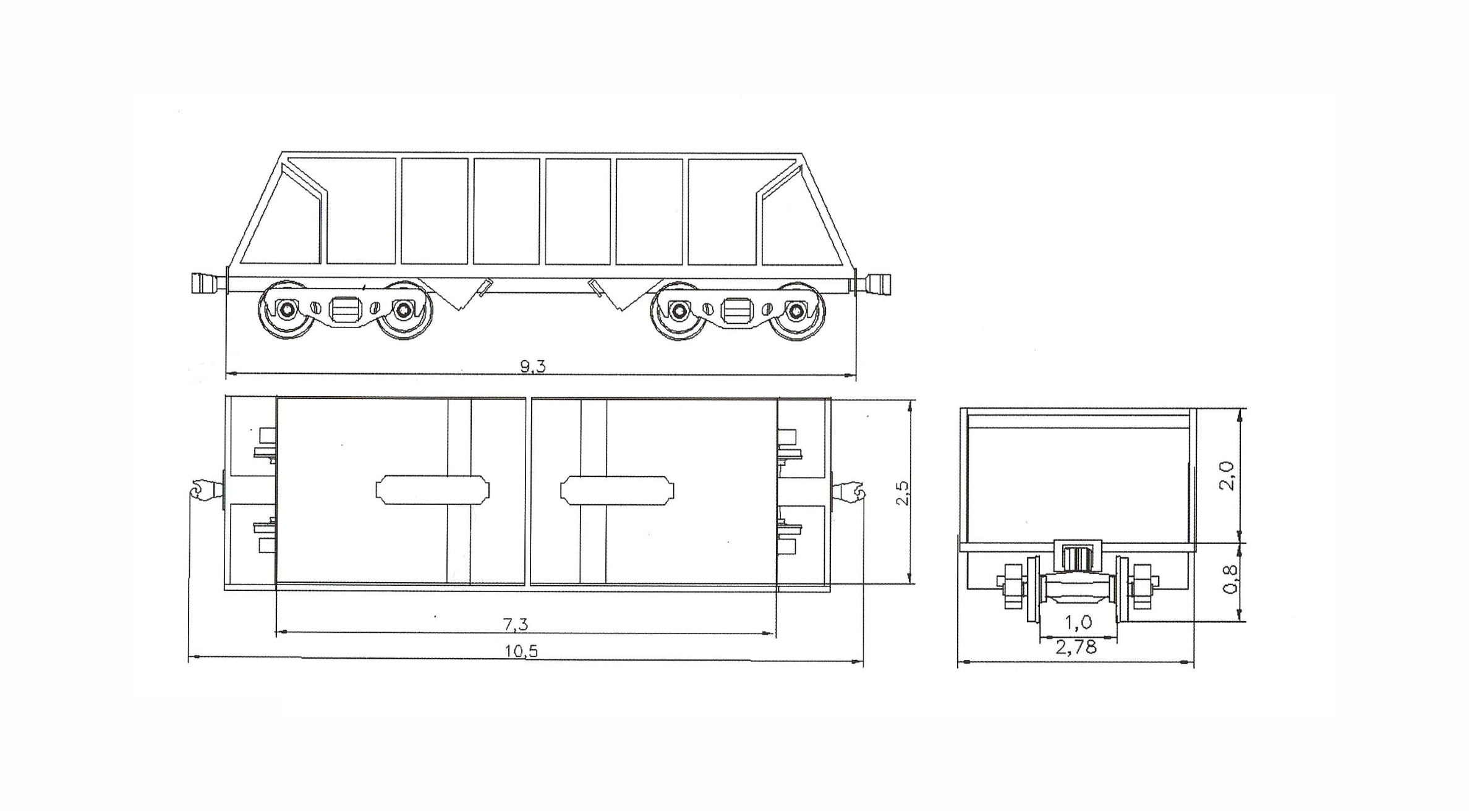

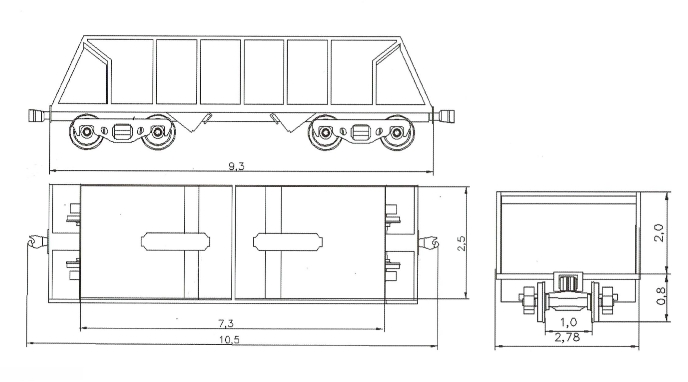

Technical Drawing
Additional Information
Truck
Trucks: Ride Control or Barber
Bearings: Cartridge or Self-Aligning Bearing
Wheels: Multiple-Use rim, CD-29 model
Brake
Brake Valve: ABS or ABSD model
Gap Adjuster: Automatic, double sense, DRVA 1900 DJ type
Brake Cylinder: 10”x12” single action
Manual Brake: Non-Spin Type
Shock and Traction Systems
Couplers: Automatic ALLIANCE Type or E Type, lower rotating operation
