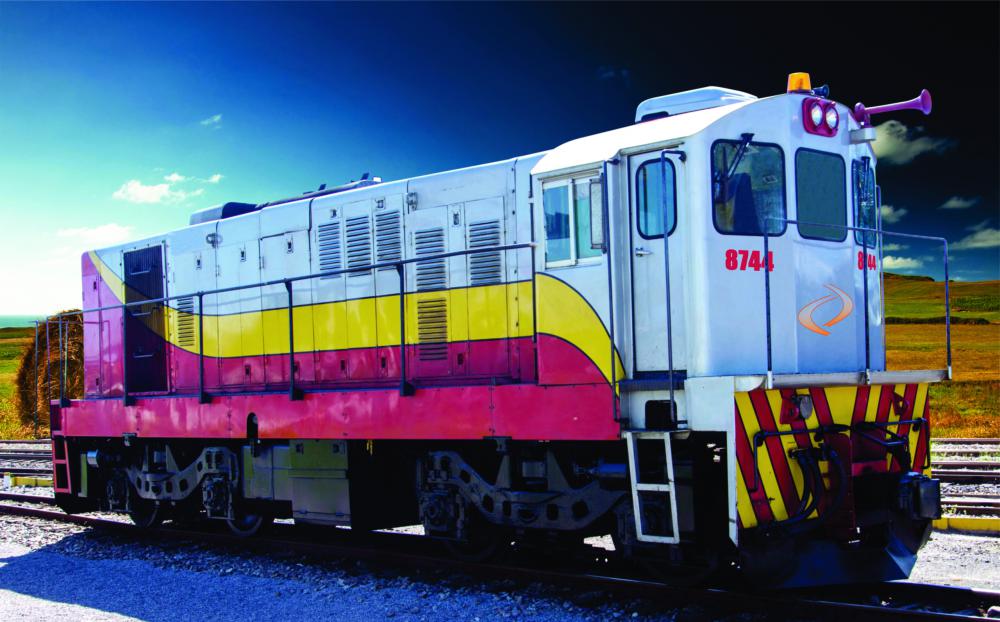

Modern GL8 Locomotive

Technical Information

Gross Power: 950 HP

Available Power for Traction: 875 HP

Total Weight (fueled): 65,000 kg

Ultimate Tensile Strength: 13,900 kgf

Maximum Speed: 68 km/h

Type of Braking Equipment: 26 LA

Minimum Rolling Radius: 58.82 m

Cap. Fuel Tank: 1,893 l

Cap. Lubricating Oil (crankcase): 492 l

Dynamic Brake: No

Length between Couplers: 12,344 mm

Width: 2,898 mm

Height: 3,835 mm

Gauge: 1.00 m / 1.60 m

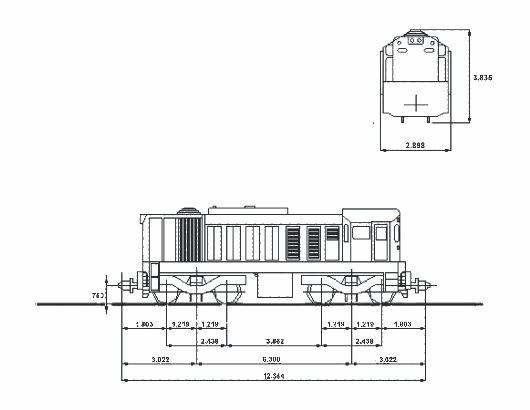

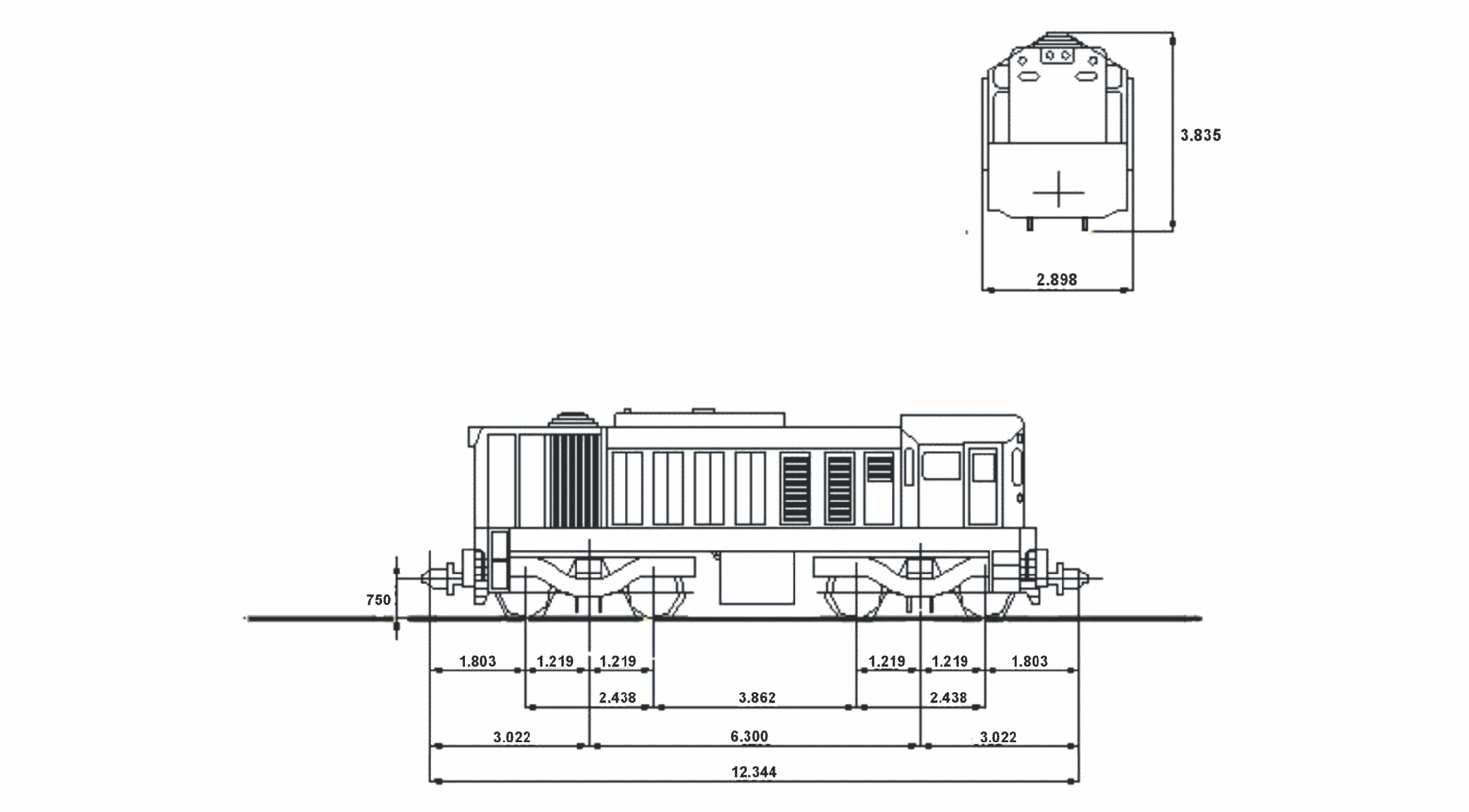

Technical Drawing

Desenho Técnico

Additional Information

Battery

Type: Lead-acid

Voltage: 64V

Capacity: 135 Ah



Diesel Engine

Model: 645-E

No. of Cylinders: 08

Disposition of Cylinder: 45° "V"

Operation Principle: 2 strokes

Cleaning: Blowers

Cooling: Water



Truck

Class of Trucks: B-B

Gears Relation: 63-14

Axis Sleeve: 5.1/2"x10"

                     6.1/2"x12"

Type of Bearings: "HYATT" / RBU Box

Type of Impeller: A-40 / CE40



Compressor

Model: WXOV / WBO

Cooling System: Air / Water



Traction Motor

Model: D-29

Type: C.C.

Maximum Intensity: 450 A

Quantity per Locomotive: 04



Main Generator

Model: D-15 / D-25

Nominal Voltage (C.C.): 600V

Maximum Intensity: 1000 – 1100 A



Auxiliary Generator

Power: 10 kW
