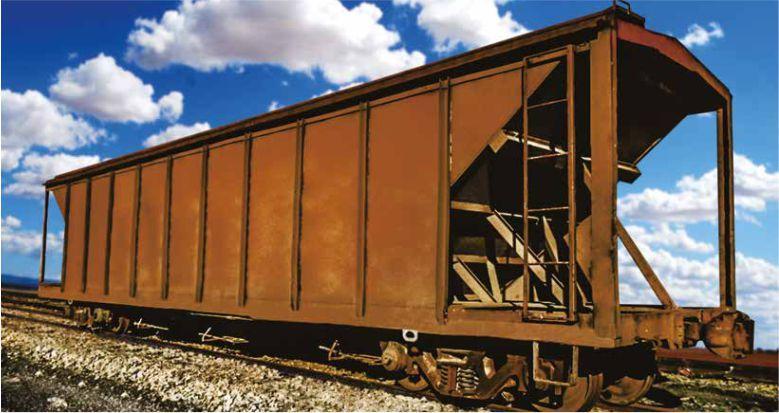

HFC Type Wagon
Technical Information
Useful Volume: 77.00 m3
Nominal Load Capacity: 45.50 T
Tare: 18.50 T
Hoppers: Rack drawer type w/ 03 950 x 600 mm units
Latches: Continuing with 6 caps

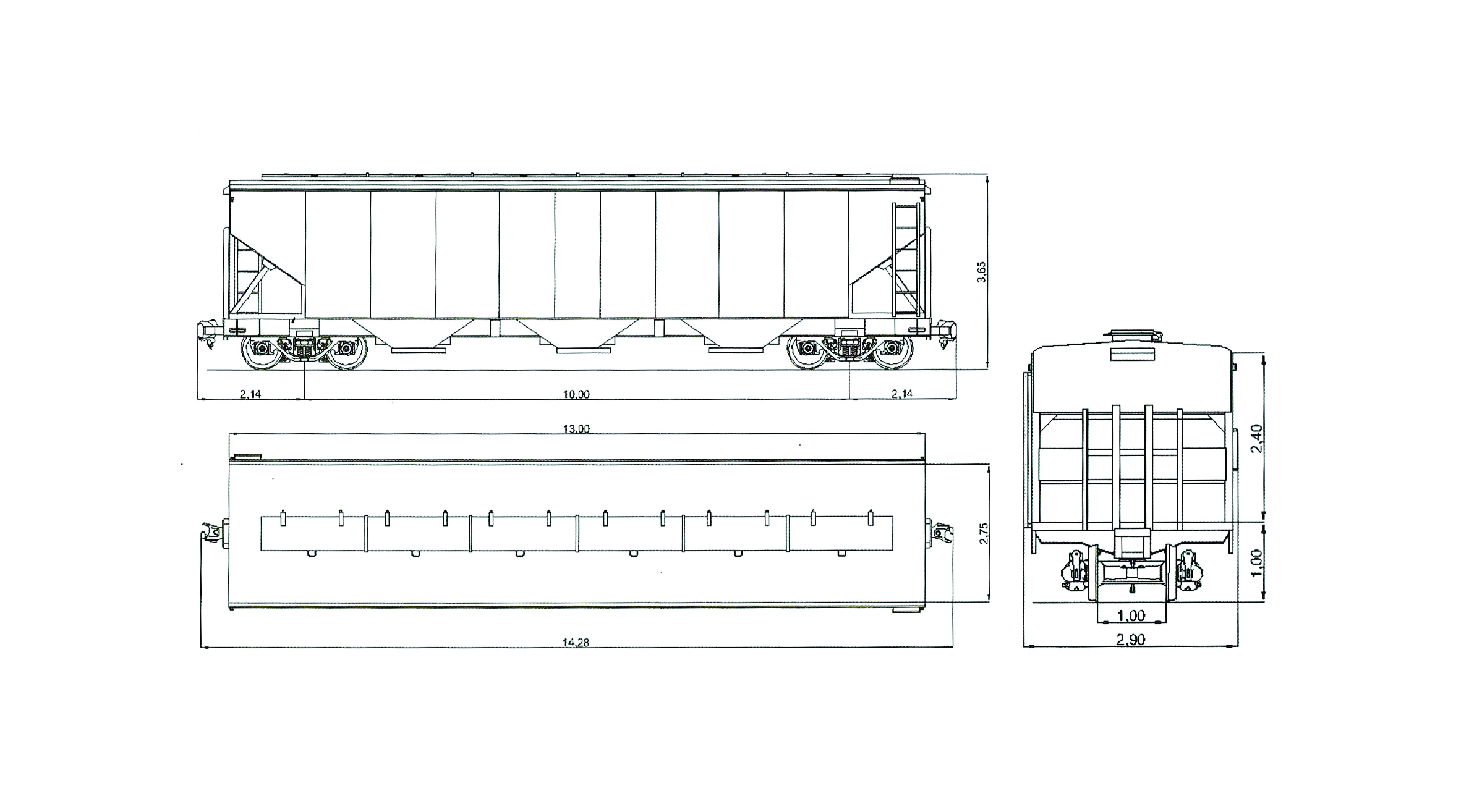

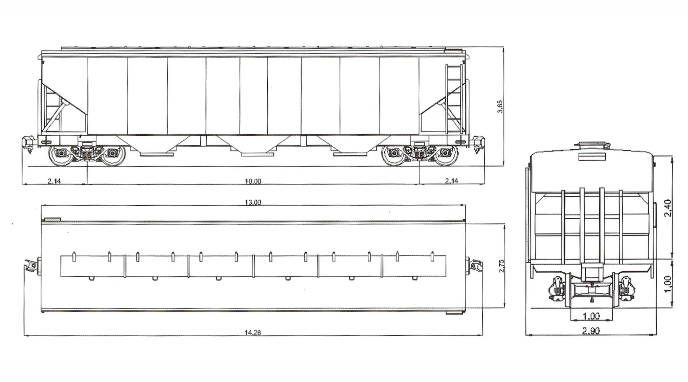

Technical Drawing
Additional Information
Truck
Trucks: Ride Control or Barber
Bearings: Cartridge or Self-Aligning Bearing
Wheels: Multiple-Use rim, CD-29 model
Brake
Brake Valve: ABS model
Gap Adjuster: Automatic, double sense, DRVA 1900 DJ type
Brake Cylinder: 10”x12” single action
Manual Brake: Non-Spin Type
Shock and Traction Systems
Couplers: Automatic ALLIANCE Type or E Type, lower rotating operation
